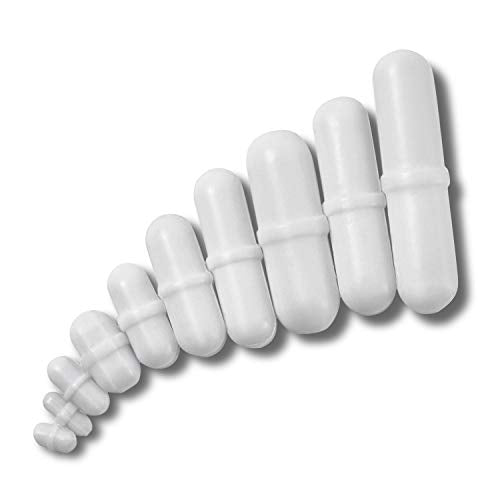

What Is a PTFE Stirrer Bar with Pivot Ring?
A PTFE stirrer bar with a pivot ring is a magnetic stirring device used with a magnetic stirrer or hotplate stirrer to mix liquids automatically. It contains a magnetic core enclosed in a protective coating of PTFE (polytetrafluoroethylene), a material known for its chemical resistance and durability.
When placed inside a container on top of a magnetic stirrer, the rotating magnetic field from the stirrer causes the bar to spin, creating a vortex that mixes the liquid efficiently.
The pivot ring in the centre of the bar allows it to spin smoothly and maintain stability even in vessels with slightly uneven or curved bottoms.
A typical 30 mm stirrer bar is cylindrical, approximately 6 mm in diameter, and designed for medium-volume laboratory mixing applications.
How Does a Magnetic Stirrer Bar Work?
Magnetic stirring works through a simple but effective principle.
- A magnetic stirrer plate contains a rotating magnet.
- The stirrer bar placed inside the liquid contains a magnetic core.
- As the stirrer plate rotates, the magnetic field forces the stirrer bar to spin.
- The spinning bar agitates the liquid, creating a vortex that mixes the contents.
Because the process is automated, it allows continuous, hands-free mixing while maintaining consistent speeds and conditions.
Why Use a Pivot Ring Stirrer Bar?
Stirrer bars come in different shapes and designs. The pivot ring version offers several advantages compared with flat or straight bars.
1. Improved Stability
The central ring acts as a pivot point, allowing the stir bar to remain balanced during rotation. This prevents wobbling and ensures smoother stirring.
2. Better Performance in Round-Bottom Vessels
Many laboratory containers such as flasks or reaction vessels have curved or uneven bases. The pivot ring reduces contact with the vessel surface, enabling the bar to rotate efficiently in these containers.
3. Reduced Friction
Because the pivot ring reduces the contact area between the stir bar and the vessel base, friction is minimized. This helps the bar spin more freely and improves mixing efficiency.
4. More Consistent Mixing
The stable rotation created by the pivot ring produces a stronger and more controlled vortex in the liquid.
Why PTFE Is Used for Stirrer Bars
PTFE is one of the most widely used coatings for laboratory stirrer bars due to its exceptional properties.
Chemical Resistance
PTFE is resistant to most laboratory chemicals, acids, and solvents, making it suitable for a wide range of laboratory applications.
High Temperature Tolerance
PTFE-coated stirrer bars can withstand high temperatures, often up to around 250–260 °C, making them ideal for heating and mixing processes.
Smooth, Non-Reactive Surface
The non-reactive surface prevents contamination and ensures that the stir bar does not interfere with the chemical reaction being performed.
Easy Cleaning and Sterilisation
Many PTFE stirrer bars are autoclavable and easy to clean, allowing them to be reused in sterile laboratory environments.
Common Laboratory Applications
A 30 mm PTFE stirrer bar with pivot ring is commonly used in laboratories for:
● Mixing chemical solutions
● Dissolving powders or reagents
● Preparing buffers and media
● Maintaining homogeneous reactions
● Continuous mixing during heating processes
● Research and teaching laboratory experiments
These stirrer bars are compatible with most magnetic stirrer plates and hotplate stirrers, making them a standard accessory in chemistry, biology, and analytical laboratories.
How to Choose the Right Stirrer Bar Size
Selecting the correct stirrer bar size is important for optimal mixing.
A 30 mm stirrer bar is typically ideal for:
● Medium-volume containers
● Standard laboratory beakers and flasks
● Solutions requiring moderate mixing speed
Smaller stir bars are used for test tubes or small volumes, while larger bars are designed for bigger vessels or viscous solutions.
Best Practices When Using Stirrer Bars
To get the best results from your stirrer bar, consider the following tips:
● Start with a low stirring speed and increase gradually.
● Ensure the stirrer bar is centred in the container before starting.
● Use the correct size stir bar for the vessel.
● Clean the stir bar after each use to avoid contamination.
● Avoid dropping or damaging the PTFE coating.
Proper handling ensures consistent performance and extends the lifespan of the stirrer bar.
A Small Tool That Makes a Big Difference
In many laboratories, the stirrer bar is one of the most frequently used tools. Despite its small size, it enables precise, consistent mixing that supports accurate results in experiments and analyses.
A 30 mm PTFE stirrer bar with pivot ring is a reliable choice for laboratories that require stable mixing, chemical resistance, and long-lasting performance.
