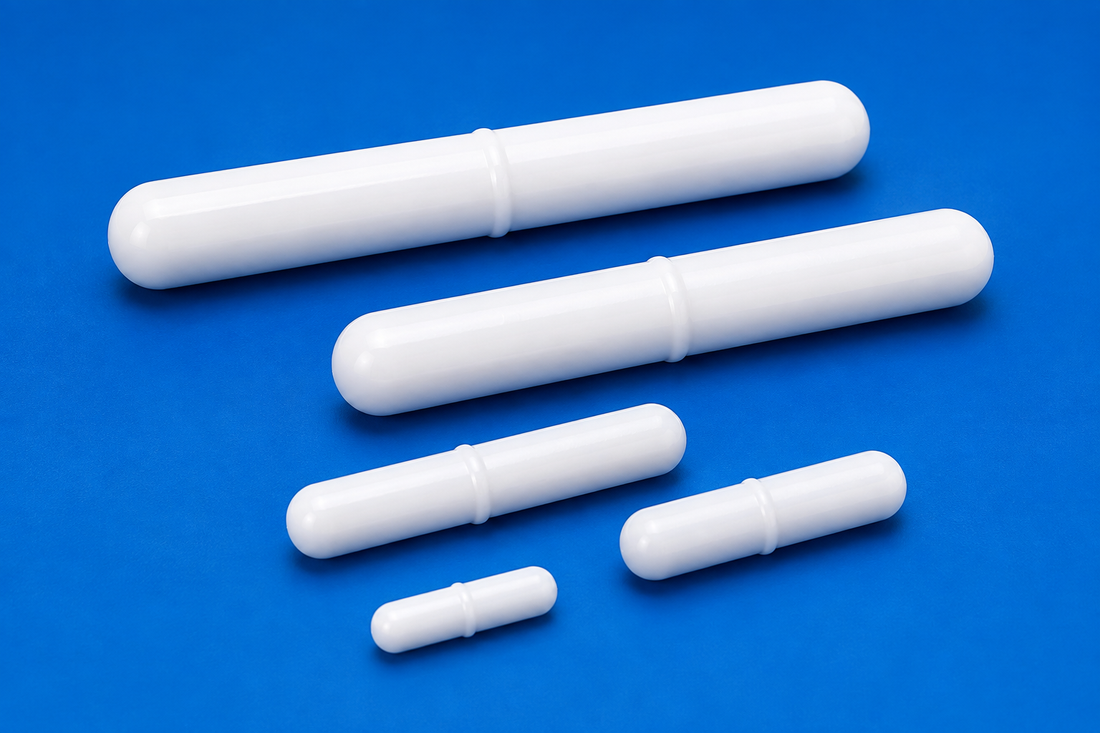

How to Choose the Right PTFE Magnetic Stirrer Bar for Your Laboratory
Accurate and consistent mixing is essential in laboratories across education, research, manufacturing, healthcare, food testing and quality control. Whether you are preparing a buffer solution, dissolving a chemical compound or mixing a small analytical sample, the quality of the mixing process can influence the reliability of your results.
One of the simplest and most effective tools for laboratory mixing is the PTFE magnetic stirrer bar. Although it may appear to be a small piece of laboratory equipment, choosing the correct stirrer bar can improve mixing efficiency, reduce interruptions and help laboratory teams achieve more consistent results.
Lab Buddy supplies several PTFE stirrer bar options, including the PTFE 20mm Stirrer Bar, the PTFE Z10 5 x 10mm Stirrer Bar and the PTFE 25mm Pivot Ring Stirrer Bar. Each option is designed for different vessel sizes, sample volumes and mixing applications.
This guide explains how magnetic stirrer bars work, why PTFE is commonly used and how to select the most suitable option for your laboratory.
What Is a Magnetic Stirrer Bar?
A magnetic stirrer bar is a small magnetic tool placed inside a container of liquid. The container is positioned on a magnetic stirring plate, which creates a rotating magnetic field beneath the vessel.
As the magnetic field rotates, the stirrer bar spins inside the liquid. This movement creates circulation and helps combine the contents of the vessel.
Magnetic stirrer bars are commonly used in:
● Preparing laboratory solutions
● Dissolving powders and solid compounds
● Mixing reagents
● Preparing buffer solutions
● Maintaining uniform sample suspensions
● Conducting chemistry experiments
● Mixing liquids during titration preparation
● Supporting quality-control procedures
Magnetic stirring can be particularly useful when a solution needs to be mixed continuously for an extended period. It allows laboratory personnel to perform other tasks while the sample is being stirred.
Why Are Stirrer Bars Coated with PTFE?
PTFE stands for polytetrafluoroethylene. It is frequently used as the outer coating of magnetic stirrer bars because of its durability and chemical resistance.
A PTFE coating creates a smooth surface around the magnetic core of the stirrer bar. This helps protect the magnet from direct exposure to the solution while allowing the bar to rotate efficiently.
The potential benefits of PTFE stirrer bars include:
Chemical resistance
PTFE is resistant to many chemicals commonly encountered in laboratory environments. This makes PTFE-coated stirrer bars suitable for a wide range of mixing applications.
However, laboratories should always confirm that the stirrer bar and other equipment are compatible with the particular chemicals, concentrations and temperatures being used.
Smooth operation
The smooth PTFE surface helps the bar rotate inside laboratory glassware with relatively low friction. This supports consistent movement and may reduce unnecessary contact with the bottom of the vessel.
Easier cleaning
The non-porous surface of PTFE generally makes stirrer bars easier to clean between applications. Proper cleaning is important for limiting cross-contamination and protecting the integrity of laboratory samples.
Broad laboratory use
PTFE stirrer bars can be used in many types of laboratories, including university laboratories, school science departments, research facilities, industrial laboratories and quality-control environments.
Why Stirrer Bar Size Matters
Selecting a stirrer bar based only on price or appearance can result in poor mixing performance. The bar should be appropriate for the size and shape of the vessel, the volume of liquid and the viscosity of the solution.
A stirrer bar that is too small may not create enough circulation. A bar that is too large may rotate poorly, strike the walls of the container or become unstable as the stirring speed increases.
Before selecting a magnetic stirrer bar, consider:
● The diameter of the beaker, flask or container
● The volume of liquid being mixed
● The depth of the liquid
● The viscosity of the solution
● The required mixing speed
● The shape of the bottom of the vessel
● Whether the sample contains suspended particles
● The strength of the magnetic stirrer
Laboratories that handle different vessels and sample volumes may benefit from keeping several stirrer bar sizes available.
PTFE 20mm Stirrer Bar
The Lab Buddy PTFE 20mm Stirrer Bar is a practical option for routine laboratory mixing. Its 20mm length makes it suitable for many small and medium-sized containers.
This type of stirrer bar may be used for applications such as:
● Preparing general laboratory solutions
● Dissolving salts and powders
● Mixing aqueous samples
● Preparing reagents
● Conducting teaching experiments
● Supporting routine research activities
The simple cylindrical design makes it a versatile addition to a laboratory equipment collection.
The 20mm stirrer bar can be especially useful in laboratories that regularly work with moderate sample volumes but do not require a specialised bar design.
When using the stirrer bar, begin at a low speed and increase the speed gradually. This helps the bar establish a stable rotation and reduces the possibility of the bar losing contact with the magnetic field.
The PTFE 20mm Stirrer Bar is available from Lab Buddy for R46.00.
PTFE Z10 5 x 10mm Stirrer Bar
Small-scale experiments often require specialised equipment. A standard stirrer bar may be too large for narrow tubes, small vials or low-volume samples.
The Lab Buddy PTFE Z10 5 x 10mm Stirrer Bar is a compact option designed for smaller mixing applications.
Its smaller dimensions may be appropriate for:
● Small sample containers
● Narrow laboratory vessels
● Low-volume solutions
● Analytical preparation
● Microbiology applications
● Academic experiments
● Small-scale product testing
● Research and development work
A smaller stirrer bar gives laboratory users greater control when working with limited sample volumes. It also reduces the likelihood of an oversized bar interfering with the walls of a small container.
Because small samples can be sensitive to excessive agitation, stirring should begin at the lowest practical speed. The speed can then be adjusted according to the movement of the liquid.
The PTFE Z10 5 x 10mm Stirrer Bar is available from Lab Buddy for R14.00, making it an affordable option for laboratories that require several small stirrer bars.
PTFE 25mm Pivot Ring Stirrer Bar
The Lab Buddy PTFE 25mm Pivot Ring Stirrer Bar has a raised ring around its centre. This ring acts as a pivot point while the bar rotates.
By reducing the amount of surface area touching the bottom of the vessel, the pivot ring can help promote smoother rotation. It may also reduce friction and improve the bar’s stability during mixing.
The 25mm pivot-ring stirrer bar may be useful for:
● Medium-sized beakers and flasks
● Longer mixing procedures
● Applications requiring stable rotation
● General chemistry preparation
● Laboratory quality-control procedures
● Mixing solutions that require consistent circulation
● Educational and research laboratories
A pivot-ring design can be beneficial when a conventional cylindrical stirrer bar does not rotate smoothly in a particular vessel.
The PTFE 25mm Pivot Ring Stirrer Bar is available from Lab Buddy for R59.00.
How to Prevent a Stirrer Bar from Losing Its Rotation
A stirrer bar sometimes begins to wobble, jump or stop rotating. This is often described as the stirrer bar losing synchronisation with the magnetic field.
Several factors can cause this problem:
Stirring speed is too high
Increasing the speed too quickly may cause the magnetic field to move faster than the bar can follow.
Start slowly and increase the speed gradually until the required circulation is achieved.
Incorrect bar size
A stirrer bar that is too large or too small for the vessel may not rotate effectively. Select a bar that matches the diameter and shape of the container.
Vessel is incorrectly positioned
The container should generally be positioned near the centre of the magnetic stirring plate. An off-centre vessel can weaken the connection between the stirrer and the magnetic bar.
Solution is highly viscous
Thicker liquids require more force to mix. A larger stirrer bar, stronger magnetic stirrer or lower operating speed may be necessary.
Uneven vessel base
Some containers have curved or irregular bottoms. A pivot-ring stirrer bar may provide more stable movement in certain vessel shapes.
Cleaning and Maintaining PTFE Stirrer Bars
Proper cleaning helps prevent residue from being transferred between samples.
After use:
- Remove the stirrer bar using clean forceps or a magnetic retrieval tool.
- Rinse it promptly to prevent material from drying on the surface.
- Clean it using a method that is compatible with the chemicals used.
- Inspect the PTFE coating for scratches, deep marks or visible damage.
- Allow it to dry before storing it in a clean location.
- Keep different stirrer bar sizes organised and clearly labelled.
A damaged PTFE coating may compromise the protection surrounding the internal magnet. Stirrer bars showing significant damage should be replaced.
Cleaning requirements will vary according to the laboratory environment and the substances handled. Laboratories should follow their approved cleaning and contamination-control procedures.
Which Lab Buddy Stirrer Bar Should You Choose?
The right option depends on your application.
Choose the PTFE Z10 5 x 10mm Stirrer Bar when working with very small containers or low-volume samples.
Choose the PTFE 20mm Stirrer Bar for routine laboratory mixing in small or medium-sized vessels.
Choose the PTFE 25mm Pivot Ring Stirrer Bar when you require a longer bar with a central pivot point for smoother and more stable rotation.
Many laboratories will benefit from purchasing a selection of stirrer bars. Having different sizes available makes it easier to match the equipment to the experiment instead of trying to use one bar for every application.
Purchase PTFE Magnetic Stirrer Bars from Lab Buddy
Reliable mixing begins with selecting laboratory equipment that is appropriate for the sample, vessel and procedure.
Lab Buddy offers affordable PTFE magnetic stirrer bars for routine laboratory work, small-volume preparation and stable mixing applications. Whether you are equipping a university laboratory, school science department, research facility or quality-control laboratory, you can choose the stirrer bar that best matches your requirements.
Browse the Lab Buddy range today and order the PTFE 20mm Stirrer Bar, PTFE Z10 5 x 10mm Stirrer Bar or PTFE 25mm Pivot Ring Stirrer Bar online. Add the products to your cart and equip your laboratory for efficient, consistent mixing
