Knowing how to use a magnetic stirrer correctly can improve mixing consistency, protect samples and reduce avoidable interruptions in the laboratory. Although magnetic stirring is relatively straightforward, unsuitable stirrer bars, excessive speed and poor equipment placement can produce unreliable results.
Whether you are preparing routine solutions in a teaching laboratory or handling samples in a research environment, avoiding the following five mistakes will help you get more dependable performance from your magnetic stirrer.
1. Using the Wrong Stirrer-Bar Size or Shape
One of the most frequent mistakes is selecting a stirrer bar without considering the vessel and liquid volume. If the bar is too small, it may not move enough liquid to achieve uniform mixing. If it is too large, it may collide with the container or struggle to rotate smoothly.
The shape of the vessel also affects the choice. Straight stirrer bars work well in many flat-bottomed containers, while oval bars can be useful in round-bottomed vessels. Pivot-ring designs reduce the contact area between the bar and the vessel and can help it rotate more freely in suitable applications.
Lab Buddy stocks several sizes for different setups, including:
● PTFE Stirrer Bar Z10, 5 × 10 mm
● PTFE Stirrer Bar Z12, 3 × 12 mm
● 40 mm PTFE Pivot-Ring Stirrer Bar
There is no single size that is best for every experiment. Match the bar to the vessel base, sample volume and liquid properties, and follow the equipment and procedure requirements used in your laboratory.
2. Increasing the Speed Too Quickly
Turning the speed control up too rapidly can cause the stirrer bar to lose alignment with the magnetic field. The bar may jump, vibrate or move around the vessel instead of rotating steadily. This is sometimes described as the stirrer bar “throwing”.
Start at a low speed and increase it gradually until a stable vortex forms. The aim is consistent circulation, not necessarily the deepest possible vortex. Excessive speed can introduce air into a sample, encourage splashing and create unnecessary instability.
If the bar repeatedly loses its position, stop the stirrer, centre the vessel and bar, and restart slowly. Also confirm that the selected stirrer bar is appropriate for the vessel and liquid.
3. Placing the Vessel Off-Centre
The magnetic field is most effective when the stirrer bar and vessel are correctly positioned over the drive magnet. Placing the container too far from the centre can cause uneven rotation or make the bar lose coupling.
Before switching on the instrument, place the stirrer bar inside the vessel and position the vessel centrally on the plate. Make sure the laboratory bench is stable and level. If the vessel moves during operation, reduce the speed and correct its position before continuing.
Users should also avoid changing or removing the vessel while the stirrer is operating. Stop the instrument first, then handle the sample according to the laboratory’s safety procedures.
4. Applying Heat Without Proper Monitoring

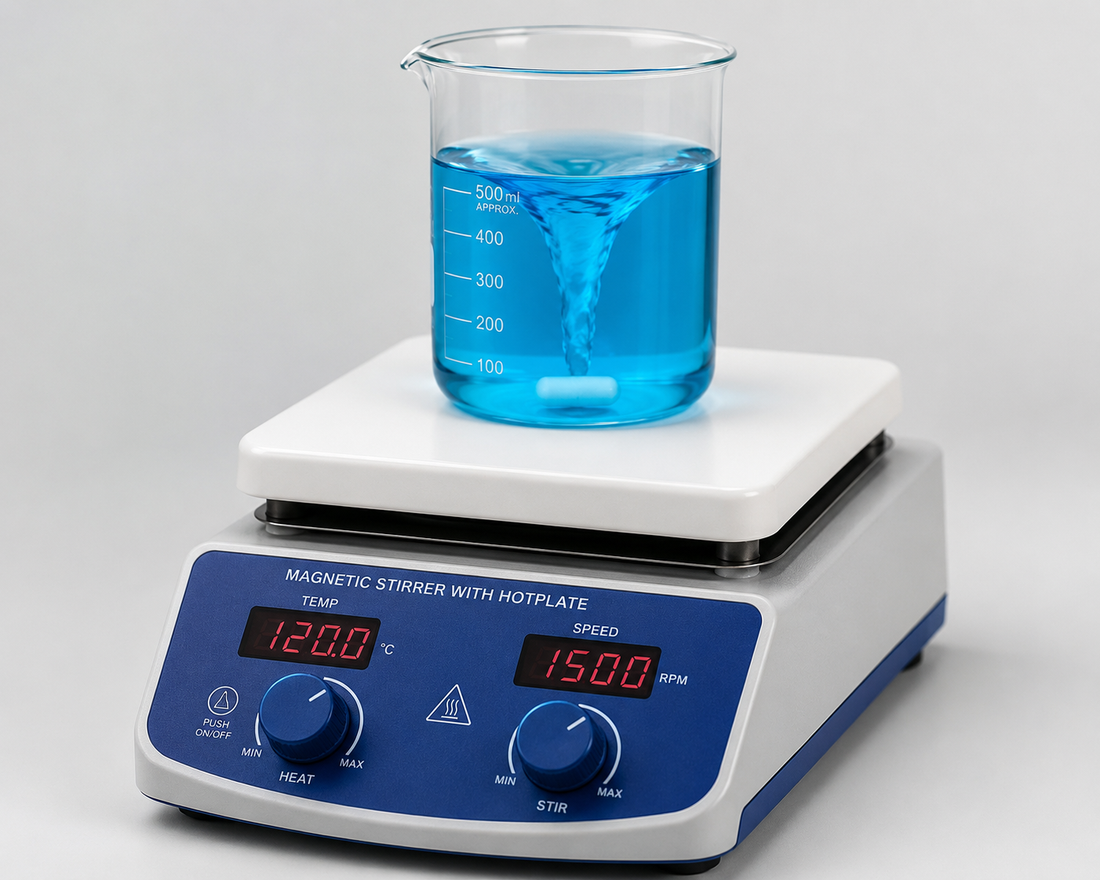

When using a Magnetic Stirrer with Hotplate SH4, heating requires the same care as mixing. A hotplate may remain hot after it has been switched off, and the appearance of the surface may not indicate its temperature.
Confirm that the vessel and sample are suitable for heating. Monitor the process using the appropriate temperature-measurement method, and never assume that the sample temperature is identical to the hotplate setting or surface temperature.
Heat transfer is affected by the vessel material, sample volume, surrounding conditions and equipment design.
If an application does not require heat, a Magnetic Stirrer Only 190 mm × 190 mm may be the more appropriate option.
For a detailed comparison, read Magnetic Stirrer With or Without a Hotplate: Which One Does Your Laboratory Need?
5. Neglecting Cleaning and Inspection
Residue on the hotplate, vessel or stirrer bar can contaminate later samples and interfere with smooth rotation. Stirrer bars should be cleaned after use according to the substance handled and the laboratory’s approved cleaning procedure.
Inspect the PTFE coating regularly. A stirrer bar with deep scratches, visible damage or a compromised coating may trap residue and should be assessed before being used again.
The top plate, electrical cable and controls should also be checked for visible damage. Equipment that appears damaged should be removed from use and referred to an authorised person for inspection.
Allow a hotplate to cool before cleaning it. Never immerse the magnetic stirrer itself in water or allow liquid to enter its electrical components. Always follow the manufacturer’s operating, cleaning and maintenance instructions.
A Simple Magnetic-Stirrer Setup Routine
Good results begin before the instrument is switched on. Select a suitable vessel and stirrer bar, place the bar gently into the liquid and centre the vessel on the plate.
Begin at a low speed, increase it gradually and watch the liquid for stable circulation. If heat is required, apply it carefully and monitor the sample using the appropriate method.
When mixing is complete, reduce the speed, switch off the instrument and allow heated components to cool. Remove the stirrer bar with a suitable retriever or approved laboratory method, then clean and store the equipment correctly.
Improve the Consistency of Your Laboratory Mixing
The most common magnetic-stirrer problems are often caused by setup rather than the instrument itself. Choosing the correct stirrer bar, increasing speed gradually, centring the vessel, monitoring heat and cleaning the equipment can make daily laboratory work safer and more consistent.
